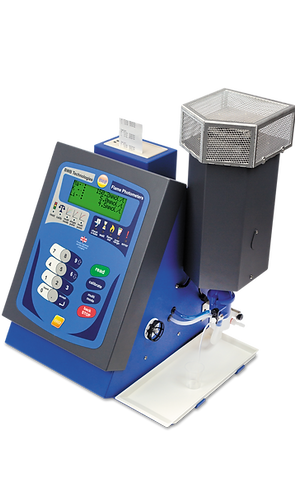

The BWB BIO AV Flame Photometer
The BWB BIO AV Flame Photometer
Distributor & Service Provider In India
Inkarp Instruments, a trusted BWB Technologies partner, presents the BWB BIO AV Flame Photometer in India, a specialized instrument for clinical and biomedical applications.
Purpose Built Flame Photometer with specialised software, firmware and hardware
- Specially configured for a range of user interests
- “IRS” (internal reference standard) caesium or lithium option
- single point calibration correction
- internal reference standards
- 10k ppm calibration standards for each element
- Analysing li, Na and K
- operator independent determination of results
- advanced automated determination of results
- integrated printer with environmentally friendly ink
- IQ, OQ, PQ web-based certification standard on bio and available on all BWB FES units
| Sample rate | 2 – 3.5ml/min | ||||
|---|---|---|---|---|---|
| Tubing materials | Silicone and Tygon® | ||||
| Specificity | Na/K/Li = <1% to each other when equal in concentration at <100ppm |
||||
| Required desk space for Instrument | 50cm (H) x 45cm (W) x 45cm (D)* For Safety reasons the Flame photometer requires 1m of unobstructed space above to allow dissipation of heat from the chimney. |
||||
| Instrument size | XP Flame Photometer 51cm (H) x 39cm (W) x 35cm (D) (20in x 15in x 14in) |
||||
| Shipping | 65cm (H) x 49cm (W) x 43cm (D) (25in x 19in x 17in) |
||||
| Weight | BIO Flame Photometer 14kg (30.8lbs) Shipping 25kg (55.1lbs) |
||||
| Optimal range | Multi-point calibration Na – 0.0043 – 300mmol/l* K – 0.0013 – 200mmol/* Li – 0.0072 – 20mmol/l* Ca – 0.025 – 20mmol/l* *With required Dilution Ratios |
||||
| Reproducibility | < 1% Coefficient of variability for 20 consecutive samples over ten minutes at concentrations of 100ppm equivalent or less. (After instrument stabilisation). | ||||
| Limit of detection (LOD) and limit of quantification (LOQ) |
|
||||
| Time to stability |
Less than 15 seconds after sample is introduced into the flame |
||||
| Ions measured | Na, K, and Li | ||||
| Recommended minimum warm up time based on ambient temperature |
21°C – 25 minutes | ||||
| Power requirements | 100V – 250V AC at 50 or 60Hz | ||||
| Fuel requirement | Propane, Butane or Natural Gas*
regulated to 19Bar. Flow rate of 0.4l/min *with modifications. BWB Technologies recommends either Propane or Butane for optimum results. |
||||
| Readout | LCD, four line, alpha numeric, back lit. |
