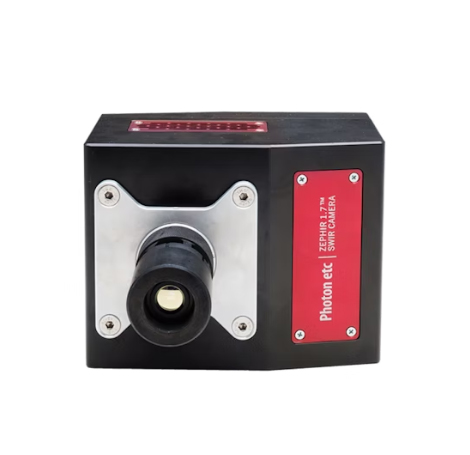

ZephIR™ 1.7

ZephIR™ 1.7

Deeply Cooled InGaAs Camera

The ZephIR 1.7 is a high-end, scientific grade, 640 x 512 pixels resolution, InGaAs camera that marries performance with reliability. It has extremely low noise levels, high efficiency, and a rapid frame rate compatible with an external trigger. This is made possible by a combination of state-of-the-art control electronics and a four stage thermoelectric cooler (TEC) which can maintain an operating temperature as low as -80 °C. The TEC, in turn, uses forced air cooling which requires none of the maintenance of a water or liquid nitrogen chilled unit.

The ZephIR 1.7 is one of the most sensitive and dependable InGaAs cameras on the market.

  • Technical Data
ZephIR 1.7x ZephIR 1.7s
Focal plane array (FPA) InGaAs InGaAs
FPA size (px) 640 x 512 640 x 512
Pixel size (µm) 15 15
Spectral range (QE > 10%) 0.45 - 1.70 µm at 25 °C and ~0.50 - 1.63 µm at -80 °C 0.95 - 1.70 µm at 25 °C and 0.90 - 1.61 µm at -80 °C
FPA operating temperature -80 °C -80 °C
Dark current (sensor at -80 °C) Target at 21 °C: < 300 (Typ. ~225) ē/px/s. Target at 21 °C: < 400 (Typ. ~300) ē/px/s.
Typical gain setting (ē/ADU) High: 2.67 | Low: 47.5 High: 2.2 | Med: 7.4 | Low: 89
Typical readout noise (ē) High: 22 | Low: 135 High: 28 | Med: 75 | Low: 315
Frame rate in CameraLink™ (fps) High: 105 | Low: 210 Up to 240 full frame. 1900 for a 128x128 ROI
Frame rate in USB 3.0 (fps) High: 110 | Low: 220 Up to 250 full frame. 1900 for a 128x128 ROI
Digitization (bits) 13 14
Quantum efficiency > 70% 0.95 - 1.67 µm at 25 °C and > 70% 0.87 - 1.60 µm at -80 °C > 70% 1.00 - 1.65 µm at 25 °C and > 70% 0.95 - 1.56 µm at -80 °C
Computer interface CameraLink™ or USB 3.0 CameraLink™ or USB 3.0
Dimensions 169 mm x 130 mm x 97 mm 169 mm x 130 mm x 97 mm
Weight 2.9 kg 2.9 kg
