Tornado Overhead Stirring System
Tornado Overhead Stirring System
Distributor & Service Provider In India
The Tornado Overhead Stirring System is designed for seamless integration with Radleys' parallel reaction stations, including the Carousel 6 Plus and Carousel 12 Plus. Inkarp's expert team provides comprehensive support, including installation, training, and maintenance, to ensure optimal performance and efficiency. With Radleys' innovative technology and Inkarp's local expertise, researchers can achieve accurate results and streamline their workflow in various applications, including pharmaceuticals, academics, and industrial research.
Use a single overhead stirring system to increase your stirring productivity by up to 600%

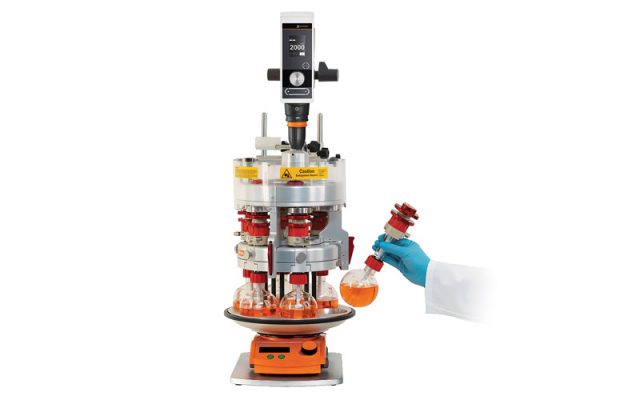

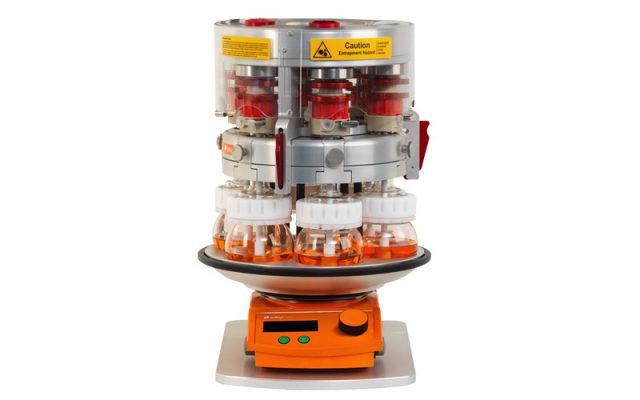

The Tornado allows powerful, controlled mechanical stirring of up to six round bottom flasks when combined with the Carousel 6 Plus Reaction Station; offering unrivalled stirring for both viscous samples and for the dispersion of delicate solids in solution.
- Integrates with Carousel 6 Plus to provide heated and stirred reactions
- Rapid heating to 180 ˚C, with water-cooled reflux head
- Perform reactions under an inert atmosphere
- Accepts 50 ml, 100 ml and 250 ml round bottom flasks
- Uses a single overhead stirrer – save space and money compared with multiple set-ups
- Compatible with all leading brands of overhead stirrer
- 2-speed drive allows overhead stirrers with less torque to be used for higher viscosities
- Stir to 1,000 rpm in low viscosity
- Max. viscosity 10,000 mPas at 500 rpm
- Integral polycarbonate safety guard prevents accidental contact with rotating parts
- Optional clamp and stand provides added stability during operation
Choice of flask sizes and styles, including wide neck option
Wide neck flasks allow easier removal of viscous and solid samples and the use of larger stirrer blades. Baffles also improve stirring by disrupting the creation of a vortex.
Universal Support Stand aids stability
This heavy duty, stainless steel and aluminium stand provides the added support needed for stable operation of the Tornado. Tool-free design is easy to assemble.
Choice of PTFE Stirring Paddles
Choose from centrifugal, anchor and propeller PTFE stirrers, specifically sized for each vessel. Custom formats available on request.
Pinch-Grip Stirrer Guide Assembly allows easy stirrer shaft insertion
Unique PEEK Pinch-Grip mechanism allows easy, tool-free stirrer shaft insertion and operation under an inert atmosphere.
| Drive System | Replaceable toothed belt drive with automatic tensioner | ||
| Gears | 2-speed drive – 1:1 ratio and 2:1 ratio | ||
| Max RPM | 1000 rpm | ||
| Max viscosity | 10,000 cps @ 500 rpm | ||
| Temperature range | Ambient to +180 ºC | ||
| Glassware | 100 ml and 250 ml | ||
| Working volume | 20 ml to 150 ml | ||
