GreenHouse Blowdown Evaporator
GreenHouse Blowdown Evaporator
Parallel evaporation of samples in 8 or 24 vials, tubes and microtiter plates.
Move away from processing samples one at a time by streamlining your post-purification evaporation with GreenHouse Blowdown. Perform parallel evaporation of samples in either 8 or 24 vials, tubes or microtiter plates.
This compact evaporation system allows you to either upgrade your existing GreenHouse Plus Parallel Synthesiser to perform parallel evaporation, or to purchase as a separate stand alone benchtop evaporator.
GreenHouse Blowdown Evaporator
Environmentally-friendly parallel evaporation of chemistry samples and HPLC fractions
Be productive
Perform parallel evaporation on multiple samples simultaneously. Evaporation is directly from your sample vial.
Be green
Trap your solvent and prevent release into the atmosphere.
Be precise
Digital temperature control offers precise management of evaporation rate and temperature; protecting sensitive samples.
Be compatible
Microtiter plate footprint fits your automated process or robotic platform.
| Solvent | Samples | Volume (ml) | Vessel | Evap. Time (min) |
| Methanol | 24 | 2 | 3.5 ml Vial | 20 |
| Methanol | 8 | 5 | 20 ml Vial | 22 |
| Acetonitrile | 24 | 2 | 3.5 ml Vial | 20 |
| Acetonitrile | 24 | 2 | 7 ml Vial | 35 |
| Water | 8 | 5 | 20 ml Vial | 157 |
| DMF | 24 | 2 | 3.5 ml Vial | 138 |
| DMF | 24 | 2 | 7 ml Vial | 145 |
| 40 ºC Base Temperature. Flowrate 10 L/min (8 well), 20 L/min (24 well) | ||||
- Precise control of inert gas flow combined with digital control of heating carefully evaporates your samples
- Interchangeable pin plates with either 8 or 24 hollow blowdown pins deliver an equal flow of gas to each tube, vial or well
- The absence of a vacuum avoids bumping, protecting the sample during evaporation
- Nickel plated aluminium offers excellent chemical resistance
- Easy viewing of samples during evaporation
- Optional flowmeter precisely controls flow of inert drying gas
Accommodates GreenHouse tubes, vials and microtiter plates
- GreenHouse reaction tubes can be evaporated directly in the standard GreenHouse reaction block without the need to load or reload the block

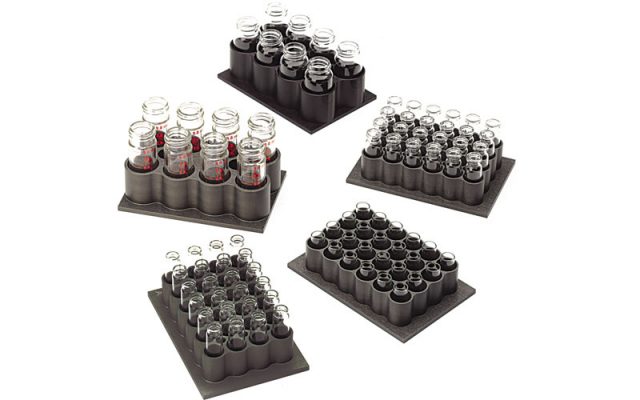

- A selection of vial racks are available to hold the most popular vial sizes in 6 x 4 and 4 x 2 arrays
Compatible with:
- 0.5 ml to 7 ml GreenHouse tubes
- 8 or 24 position vial racks
- 13 mm, 13.8 mm, 15 mm, 24.3 mm & 27.8 mm ø vials
- 8 or 24 well microtiter plates
GreenHouse Blowdown Systems

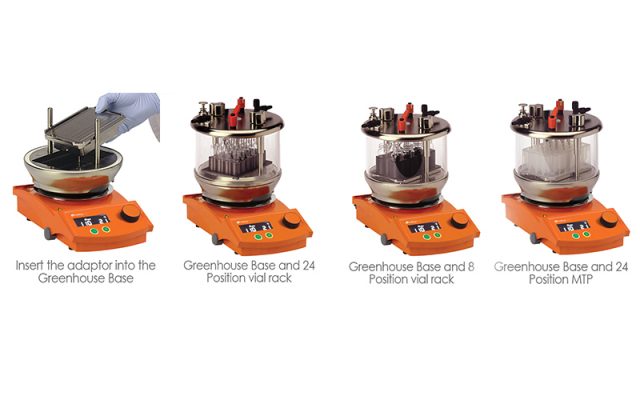

Insert the blowdown adaptor into the Greenhouse Base to accept vial racks or titer plates.
GreenHouse Blowdown Systems
Or you can use the dedicated, low profile, Blowdown Base.
