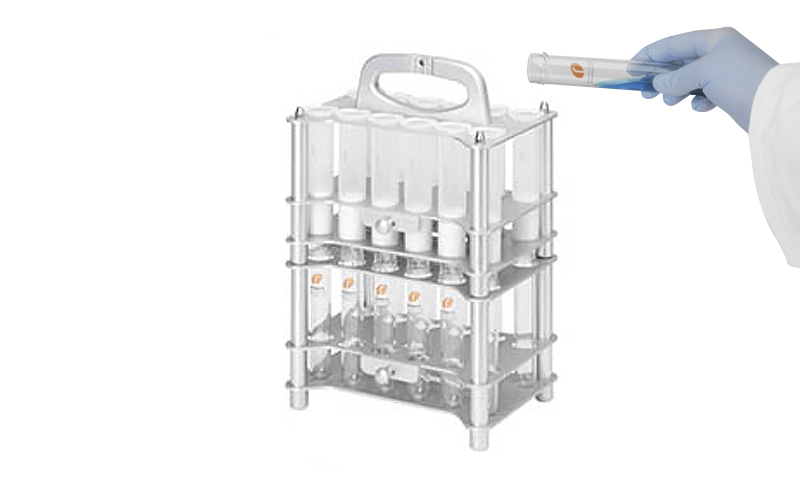

Carousel Work-Up Station
Carousel Work-Up Station
For parallel filtration, phase separation or SPEC
Easy-to-use, 12 position, parallel work-up station reduces post-synthesis bottlenecks. The Carousel Work-Up Station facilitates parallel or sequential work-up of up to 12 samples, using filtration, phase separation, liquid/liquid extraction or SPE techniques.

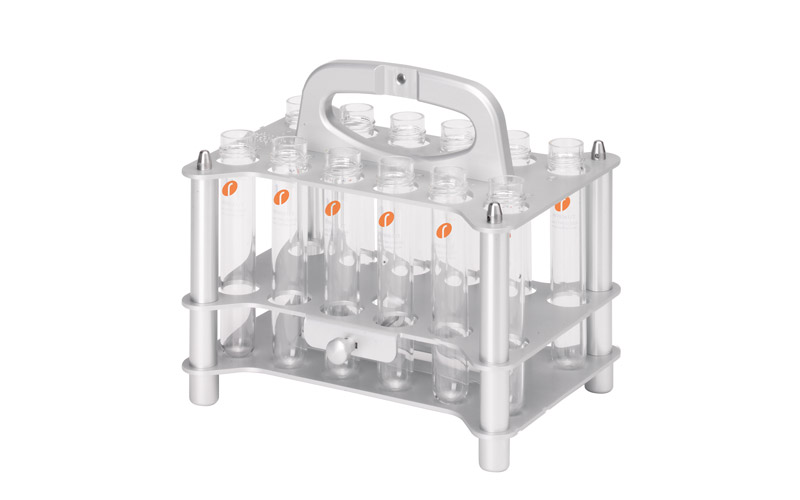

- Accepts 12 x 70 ml columns loaded into one of two identical stackable racks
- The lower rack supports 12 Carousel Reaction Tubes or standard 1 inch boiling tubes for sample collection and the upper rack holds your columns
- Unique vacuum-free design uses no taps, valves or drip needles, making assembly and operation fast and simple. Minimising cleaning and consumable costs
- Vacuum-free operation also makes removal of collection tubes easy and prevents drying of columns
- Use under gravity or with the SpeediFlow Booster, which allows precise individual control of solvent flow within each column and speeds up your work-ups
- Ergonomically designed aluminium racks are easy to load with collection tubes or columns. They are stable with good access/visibility of all columns and tubes
- Identical racks lock together for ease of operation or transportation from location to location
- An optional 3rd rack can be stacked above the 2nd rack for sequential work-up
SpeediFlow™ Booster
Everything you need in convenient easy to order systems
- The SpeediFlow is a hand held pressuriser which fits into the top of your plastic column, to push the mobile phase through the column
- Features a mechanically expandable Viton O-ring, operated by a trigger with an integral locking device, for unsupported gas tight operation
- SpeediFlow features a safety relief valve that vents at 6 to 8 psi, preventing accidental over-pressure
- SpeediFlow Booster increases flow rates to speed up your work-ups
SpeediFlow™ Adapter Heads
The SpeediFlow includes a range of optional adapters to fit all standard plastic column sizes including 15 ml, 25 ml, 70 ml and 150 ml, plus the Whatman AutoCup®. Thus allowing the SpeediFlow to be used in other SPE or filtration applications.

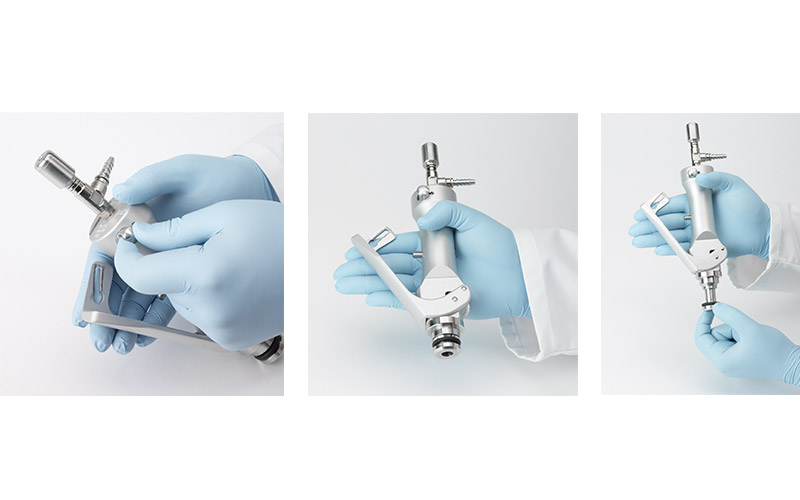

Changing the adapter head
The removal of adapters is simple. Pull out the locking pin, release the handle and the adapter can be easily pulled out.
Carousel Work-Up Columns
70 ml columns:
- 20 µm Filtration
- Phase Separation
- Silica
- SCX
- Aminopropyl
- SAX Acetate
