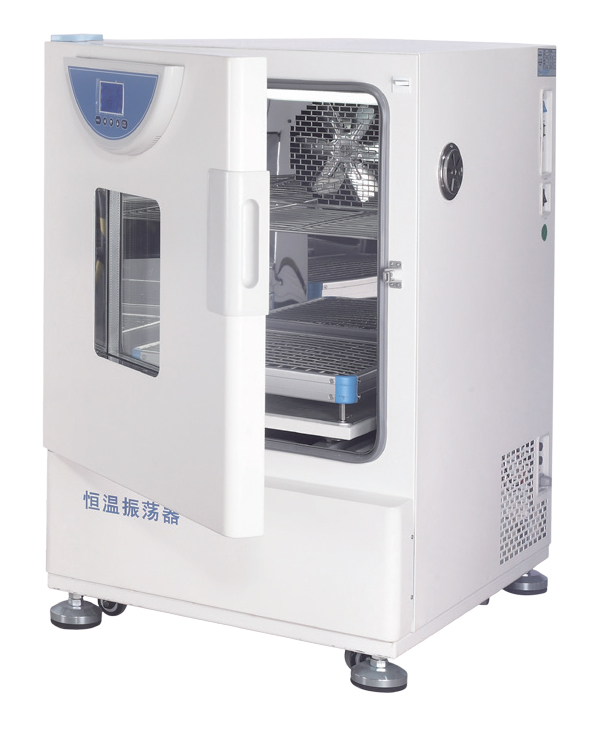

Floor-Type model
Floor-Type model
Distributor & Service Provider In India THZ-98A (Monolayer), THZ-98AB (Double deck), HZQ-X300(Double deck), HZQ-F160A(Monolayer), THZ-98C (Double deck), HZQ-X300C (Double deck)
LCD Microprocessor Controller (with timing function)
Features
- Large LCD screen to display more data at same time.
- R134a refrigerant, imported compressor and fan motor.
- Big observation windows.
- 304 Stainless steel chamber and platform, easy to clean.
- There is a 25mm instruction connection hole on the left side of the chamber for easy testing operation and temperature measurement.
- The parameters can be automatically stored in case of power failure, and it will continue run as presetting program after turn on.
- Microprocessor PID controller for temperature and shaking speed with timing function.
Safety
- Safety door switch, auto pause operation when door is opened.
- Smooth start and stop system prevents liquid spillage.
- Auto-controller of fan speed to prevent damage to the samples.
- Self-diagnosis function, it will display error when failure.
Option
- Temperature-limiting alarm system, auto switch off when over-temperature.
- RS485 connector or USB interface can connect computer record and inspect the parameters and the variations of temperature.
- Intelligent programmable temperature controller
| Model | THZ-98A(Monolayer) THZ-98AB (Double-deck) |
HZQ-X300 (Double-deck) |
HZQ-F160A (Monolayer) |
THZ-98C (Double- deck) |
HZQ-X300C (Double-deck) |
|---|---|---|---|---|---|
| Electrical Requirement | 220V 50Hz | ||||
| Shaking Speed Range | 40~300r/min | ||||
| Amplitude | 20mm | ||||
| Temperature Range | RT+5~65℃ | 4~65℃ (Ambient temp-20℃) | |||
| Display Resolution | 0.1℃ | ||||
| Power Consumption | 750W | 1100W | 950W | 950W | 1300W |
| Platform Size(mm) | 400×340 | 500×350 | 400×300 | 400×340 | 500×350 |
| Exterior Dimension (W×D×H)mm | 635×714×1055 | 725×720×1150 | 635×714×1055 | 635×714×1055 | 725×720×1150 |
| Timing Rang | 0~5999min | ||||
