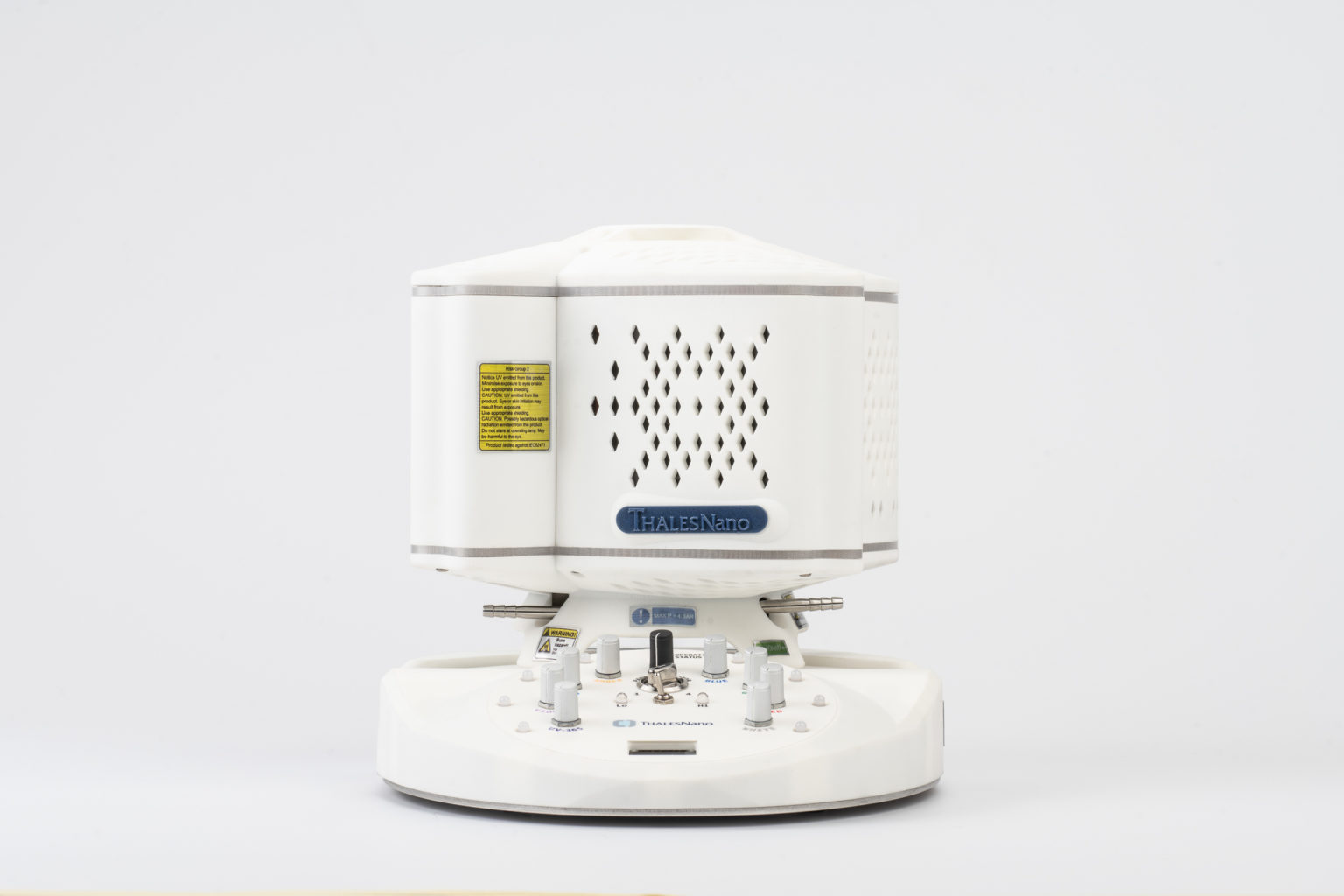

PhotoCube™

Batch and flow reactions with one reactor

Features:

Batch and flow reactions in the same platform

7+1 wavelengths in one instrument

TECHNICAL DATA

• Available wavelengths: 365, 395, 457, 500, 523, 595, 623 nm and white
• Available batch reactor volumes: 4 mL and 30 mL glass vials
• Available loop volumes: 5-15 mL
• Available loop materials: FEP or PFA
• Temperature range: from 20 to 80 °C (with external thermoregulation)
• LED input power: up to 128 W/color

APPLICATIONS

• Minisci reaction
• Negishi-coupling
• Wohl-Ziegler bromination
