60Pro – Multinuclear
60Pro – Multinuclear

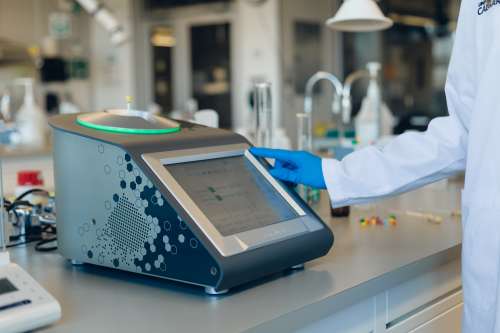

The Nanalysis 60PRO is the next generation of compact 60 MHz NMR spectrometers from Nanalysis (download brochure). This dual-channel spectrometer was designed to improve workflow for customers that require:
- High performance, multinuclear spectral acquisition
- Advanced features and experiments
- Market-leading compact size and weight
- Kinetics package capabilities for reaction monitoring
- Signal suppression
- Experiment designer
- Applications Programmatic Interface (API) for developing your own applications: see NMReady-CONNECT
- Remote control of instrument from computer, smartphone, tablet, etc.
- Non-deuterium lock options
- Secure login and user profiles with custom project settings
| Operating Frequency: | 60 MHz (1.40 T) |
| Magnet: | Permanent, no cryogens |
| User Interface: | Built-in Touchscreen or Windows, Mac or Linux compatible |
| Nuclei: | Dual-tuned: e.g., 1H/19 F/13C, 1H/19 F/31P, please inquire for more |
| Lock: | Internal 1H and 2H options |
| Sample: | Standard 5 mm NMR tubes or flow options |
| File Compatibility: | JCAMP-DX and CSV |
| Software: | Mnova, ACD/Labs, Delta, TopSpin, MATLAB, SPINit, NMRfx, etc. |
| Monitoring Software Compatibility: | LabVIEW (via NMReadyCONNECT API), Mestrelab MNova SMA |
| Resolution: | LW(50%) < 1.0 Hz (<0.017 ppm) |
| Sensitivity (SNR): | 100:1 (1% Ethylbenzene, 1 scan) |
| Stray Field: | 2 Gauss line contained within enclosure |
| Operating Temp: | 18-26°C |
| Power: | 100-240 VAC, 50-60 Hz |
| Dimensions: | 11.8" x 11.0" x 19.2" (30 x 28 x 49 cm) |
| Weight: | 58 lbs (26.3 kg) |
| Networking: | Ethernet, Wi-Fi |
| Specifications subject to change without notice |
