VCX 1500
VCX 1500

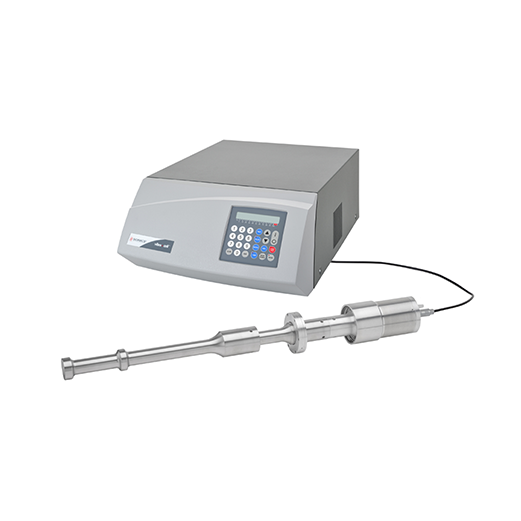

The VCX 1500 is a reliable and durable choice for many applications. This model includes a 1" diameter, 10" long probe with a 100μm maximum amplitude and a booster.
A variety of probe options are available including the flow cell inline processing accessory. Electrical requirements are 220V, 50/60Hz, single phase, 20A.
Part No. VCX 1500A can be used to order the system without the standard probe and booster.
Air cooling of the converter by compressed air is required to prevent overheating of the ultrasonic processor.
Features
- Wattage and Energy display
- Temperature monitoring
- Energy setpoint
Specifications
Power Output
1500 watt maximum
Frequency
20kHz
Dimensions
H x W x D: 7 x 15 x 18.25"
(178 x 380 x 464mm)
Booster (2:1)
Part #BHN294T21
Length
5" (129mm)
Converter Cable
Part #201-0106
Length
10' (3m)
Ultrasonic Converter
Part #CV294
Diameter
3" (76.2mm)
Length
6.25" (159mm)
Tool Kit
Part #888-00054 spanner wrench (2 included)
Standard Probe
Part #630-0697
Tip Diameter
1" (25mm)
Material
Ti6Al4V titanium alloy
Optional:
Stand with Clamp
Part #830-00461
Temperature Probe
Part #830-00060
Sound Enclosure
Part #830-00474
