Stainless steel shell Ice Flaker
Stainless steel shell Ice Flaker
Distributor & Service Provider In India

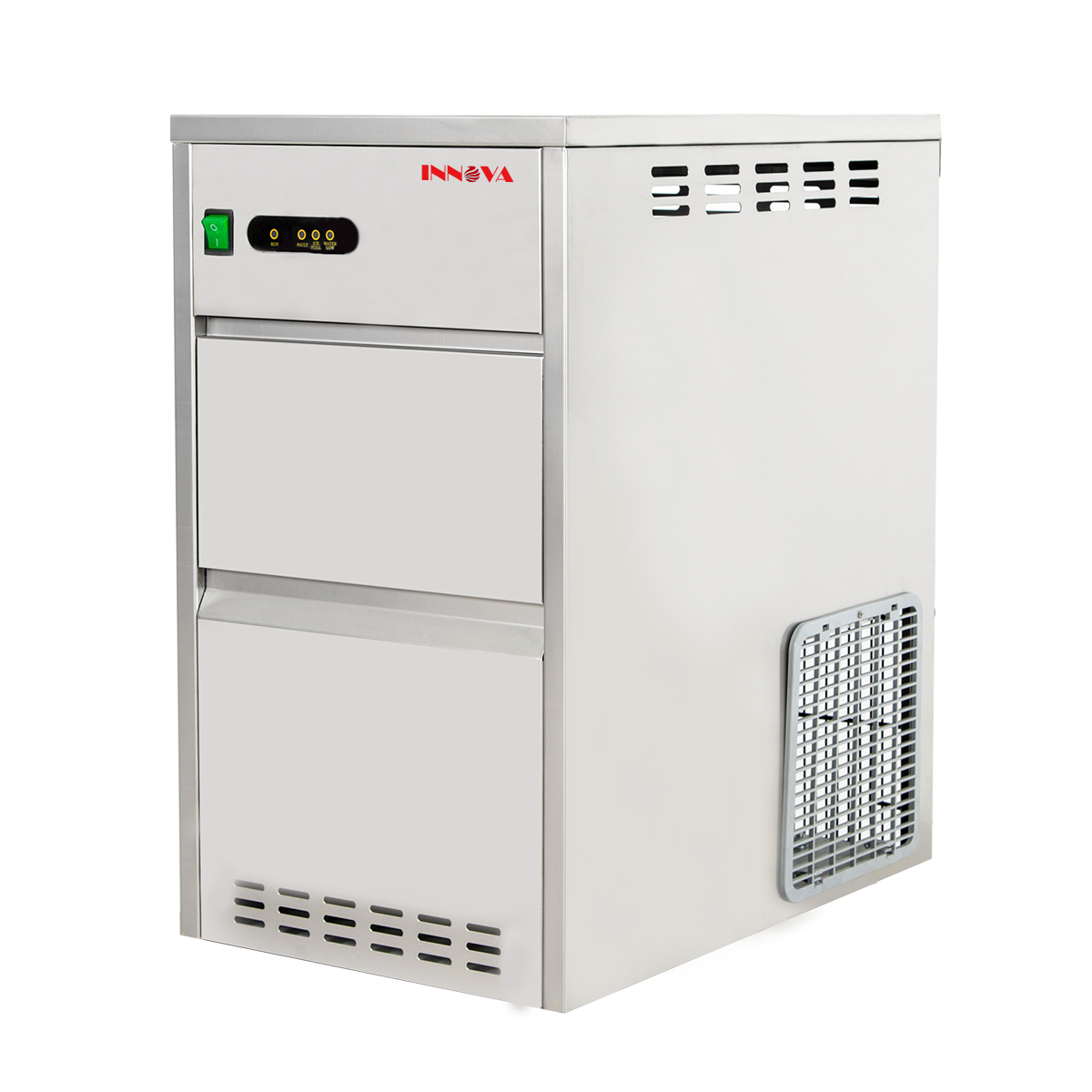

The Innova Biomedical Stainless Steel Ice Flaker is designed to deliver superior flake ice with efficiency and reliability. Built with a durable 18/8 stainless steel exterior and a food-grade ABS storage bin, it ensures hygienic ice storage and long-lasting performance. Key features include advanced alarms for water levels, sensor failures, water interruptions, and a full bin, enhancing operational safety. Using eco-friendly R134A refrigerant and thick polyurethane insulation, it offers efficient cooling while being environmentally conscious. Ideal for 220V/50Hz operations, it performs best at 10–25°C ambient and 15–20°C input water temperatures. Accessories like ice scoops and pipes are included, making it the perfect choice for seamless and efficient ice production. Inkarp is the best distributor & service provider for Innova Stainless Steel Ice Flaker in India.
Features
Bullet Ice & Flake Ice
Reliability and Key Features:

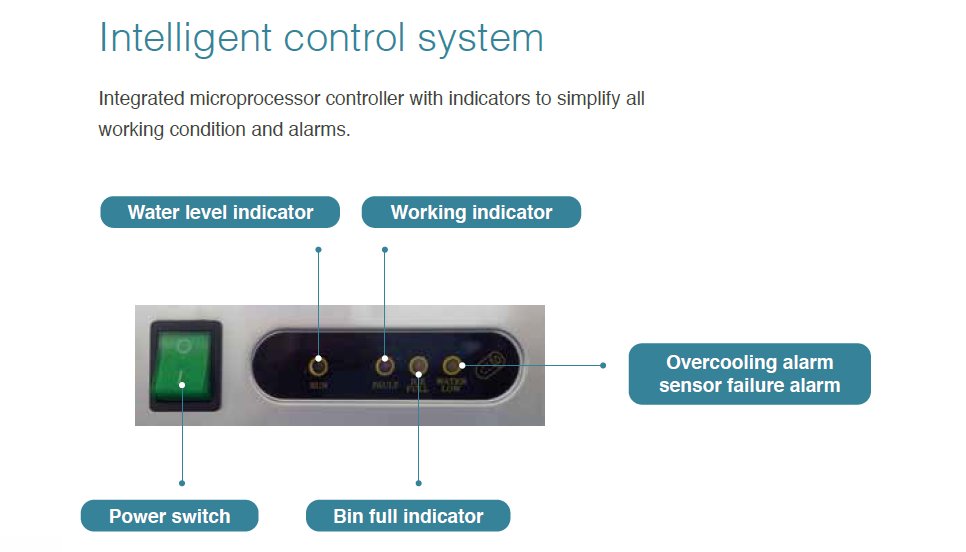

- Microprocessor thermostat controlled.
- High-quality stainless steel shells, anti-corrosive and durable, all-in-one independent structure.
- Storage bin is rust proof with good insulation to protect ice from ambient temperature.
- System automatically stops when the bin is full and resumes when ice level reduces below certain level.
Safety:
- Air cooled Refrigeration/Condenser system with internal production against overvoltage.
- Internal bladders are of fluorine-free bacterial inhibitory-type.
- Two-types of alarms: Buzzer, flashing light.
- Multiple alarms: high/low ambient temperature, bin full, sensor error, water interruption, overcooling protection.
Ergonomic Design:
- Compact, space saving design.
- CFC/HCFC free refrigerant.
- Power switch indicator in the front board of machine.
- Inlet for water, outlet for drain.
- The remaining water after ice made each time is used in recycling.
Features and Key Considerations:
- Water level alarm
- Sensor failure alarm
- Alarm for water interruption
- Bin full alarm
- The refrigerant used is R134A, which is CFC-free
- Food-grade ABS storage bin with thick polyurethane foam thermal insulation
- Exterior of the ice flaker is made of 18/8 stainless steel, which is resistant to corrosion and oxidation
- Operational voltage will be 220V/50Hz Single Phase
- For Optimal performance, Ice Flaker should only be used at temperatures between 10 and 25 degrees Celsius
- For Optimal performance, ensure that the temperature of your input water is between 15 and 20 degrees Celsius
- Ice scoop, water inlet and outlet pipe are included as standard accessories for the ice flaker
- Systems labelled "Dual Outlets of Ice" have two outlets to increase output capacity efficiently
Specifications:
| Model | Performance | Dimensions | |||
|---|---|---|---|---|---|
| Production (kg/24h) |
Storage (Kg) |
External Dimensions (W/D/H)(mm) |
Packing Dimensions (W/D/H)(mm) |
Net Weight / Gross Weight (kg) |
|
| INOF-20 | 20 | 7 | 330X503X607 | 390X560X640 | 34/38 |
| INOF-30 | 30 | 7 | 330X503X607 | 390X560X640 | 34/38 |
| INOF-40 | 40 | 10 | 398X542X732 | 460X610X760 | 56/62 |
| INOF-50 | 50 | 10 | 398X542X732 | 460X610X760 | 58/64 |
| INOF-60 | 60 | 20 | 398X542X732 | 460X610X760 | 58/64 |
| INOF-70 | 70 | 20 | 398X542X732 | 460X610X760 | 58/64 |
| INOF-85 | 85 | 20 | 548X612X872 | 610X670X900 | 56/62 |
| INOF-100C | 100 | 55 | 548X612X872 | 610X670X900 | 58/64 |
| INOF-130B | 130 | 60 | 682X610X1050 | 750x685x1100 | 66/72 |
| INOF-150 | 150 | 30 | 500X610X947 | 555X670X1000 | 70/78 |
| INOF-200 * (Dual outlets of ice) |
200 | 60 | 682X610X1050 | 740X670X1080 | 86/92 |
| INOF-250* (Dual outlets of ice) |
250 | 60 | 682X610X1050 | 740X670X1080 | 87/93 |
| INOF-300* (Dual outlets of ice) |
300 | 60 | 682X610X1050 | 740X670X1080 | 88/94 |
Note: To increase the efficiency of the system, it is always safe to use a pre-filter that removes all the debris that enters the system from the water tank.
*For optimum performance, the system's ambient temperature and input water temperature must meet the minimal requirements outlined above
