SONOREX DIGITEC DT
SONOREX DIGITEC DT
The new generation of Sonorex ultrasonic baths with an LED display for set and actual temperature. Timer with minute selection or continuous operation and LED display of remaining time
Ultrasonic cleaner for versatile applications
High-performance ultrasonic cleaner for use in the practice, laboratory and workshop.
The proven and particularly robust SONOREX ultrasonic baths clean thoroughly and gently by means of intensive cavitation bubbles, even in the hard-to-reach places of the cleaning objects.
A user-friendly membrane keypad is used for easy setting of the process parameters. The fully automatic SweepTec function prevents standing waves in the ultrasonic field and achieves particularly uniform cleaning.
Matching baskets, lids and cleaning and disinfection concentrates are available for optimally coordinated ultrasonic cleaning.
Digital Control Unit
Ergonomically designed user interface, hygienic touchscreen operation
Sweeptec
for continuous sound field oscillation for even and gentle cleaning
Medical Device Class I
Cleaning of medical instruments
Water Spray Protection Ip 33
due to permanently connected mains cable and liquid-tight housing front
Intersect
Serial interface and remote control connection for an external DT..H-RC series control unit
Time Setting
Time setting 1,2,3,4,5,10,15,30 min, continuous operation (∞)
Degas
Fast degassing function, freely selectable impulse sound - visible on LED display
Safety Shutdown
automatically 12 hours after last keystroke
Procedure
From DT 102 H, the ultrasonic baths have a drain for easier emptying

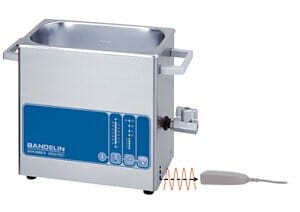

WINSONIC-DT remote control
The PC programme in connection with the infrared adapter IR 1, the comfortable operation and monitoring of the DIGITEC ultrasonic baths via USB connection. The status window provides an up-to-date overview of the operating states. Start time, stop time and the respective bath temperatures are automatically recorded in log files. This makes it possible to document the cleaning process for quality assurance purposes
WINSONIC-DT remote control
Order no. 3090
consisting of infrared adapter IR 1 and software CD
Interface for laboratory automation
The RS 232 data interface to the laboratory computer allows individual control and monitoring tasks and integration into an automated laboratory line.
The data protocol is disclosed and described in detailed application information.
The infrared adapter IR 1 is used for the connection.
Infrared adapter IR 1
Order no. 3623
