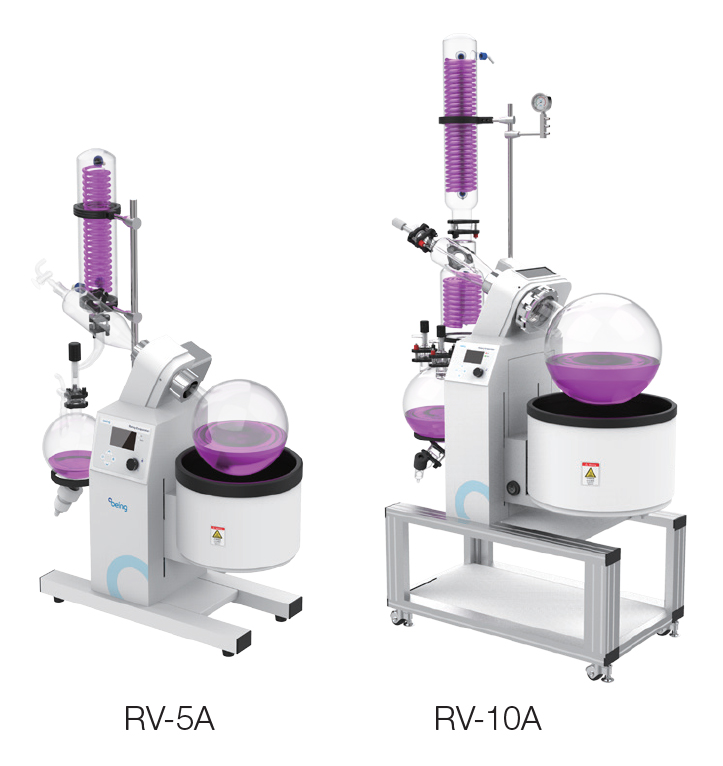

RV-5A & RV-10A
RV-5A & RV-10A Rotary Evaporator
Distributor & Service Provider In India
Inkarp Instruments, a trusted Being partner, offers RV-5A and RV-10A Rotary Evaporators in India, catering to laboratory, research, and industrial needs.
Rotary Evaporator
Rotary evaporators (also known as “Rotovaps”) are mainly used for distillations/separation applications often used for medicinal chemistry, pharmaceutical, chromatography, and petrochemical fields. In summary the system works by increasing the rate of evaporation of the solvent by
(1) Reducing the pressure to lower the solvent boiling point
(2) Rotating the sample to increase the effective surface area
(3) Heating the solution
(4) Then the evaporated solvent then condenses in a cooled glass condenser.
Features
- Simple design for one handed operation manually or automatically.
- A unique PTFE sealing system provides exceptional thermostability, minimizes corrosion, and helps to ensure day in day out headache free operation.
- Our Bath offers a dual heating mode for water and oil with overheat protection.
- PID controller offers easy input of parameters and large LCD display for easy viewing.
- Vacuum regulator available.
| Model | RV-5A | RV-10A |
|---|---|---|
| Size | 5L | 10L |
| Performance Rotation speed (rpm) | 20 - 140 | 20 - 130 |
| Performance Evaporate rate (Max. L/h) | 2 | 3.5 |
| Performance Ultimate degree(mbar) | 8mba | |
| Performance Temperature rate(℃) | Water: RT+5 - 99℃ , Oil: RT+5 - 180℃ (option) | |
| Performance Temperature stability (℃) | ±1 | |
| Function Controller | PID controller | |
| Function Safety | 1.Over current protection 2. Over temp. protection 3. Power interruption alarm 4. Anti-dry protection | |
| Function Display | LCD screen | |
| Function Lift mode | Auto lift | |
| Function Power (W) | 2300 | 3300 |
| Function Condensation area(M2) | 0.28 | 0.49 |
| Function Capability of rotatory bottle | 5L | 10L |
| Function Capability of collecting bottle | 3L | 5L |
| Function Sealing gasket | PTFE and Teflon Coating | |
| Function Lifting distance(mm) | 150 | 170 |
| Bracket | No | Aluminum alloy bracket |
| Water Bath Dimension(mm) | Diameter 280×175 | Diameter 365×225 |
| Water Material | SU304 water bath + PTFE Teflon coating | |
| Interface size Condenser barb size(mm) | 14 | 18 |
| Exterior dimension (including glasswares) W×D×H(mm) | 860×410×1120 | 1100×540×2060 |
| Power | 220V 50HZ | |
| Ambient temperature | 10 - 35℃ | |
