Microtips Vcx 750-500 W Systems
Distributor & Service Provider In India
Inkarp Instruments offers Sonics Microtips for VCX 750-500W Systems in India, ideal for small-scale ultrasonic processing.
TAPERED MICROTIPS
Two types of microtips are available to enable processing of samples in small vessels or tubes – a tapered microtip and a stepped microtip. The tapered microtip screws into the threaded end of the standard 1/2" (13 mm) probe in place of the replaceable tip. This combination is capable of generating very high amplitudes.

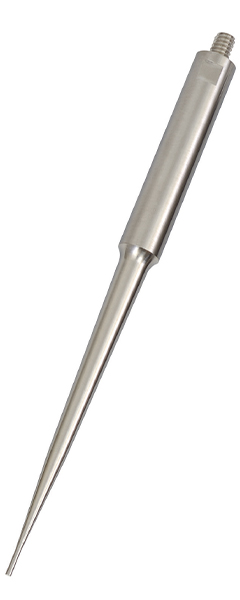

Tip Diameter
1/16" (2mm)
Volume
0.2-5mL
Max Amplitude %
40
Amplitude
170μm
Part No.
630-0417

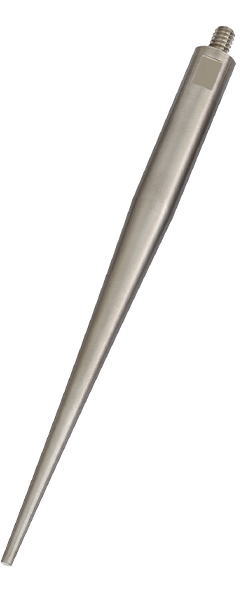

Tip Diameter
1/8" (3mm)
Volume
1-15mL
Max Amplitude %
40
Amplitude
200μm
Part No.
630-0418

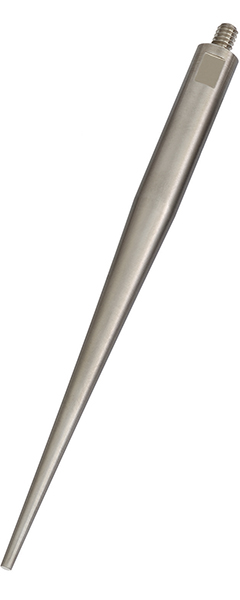

Tip Diameter
3/16" (5mm)
Volume
5-20mL
Max Amplitude %
65
Amplitude
210μm
Part No.
630-0419
Tip Diameter
3/16" (5mm)
Volume
5-20mL
Max Amplitude %
65
Amplitude
210μm
Part No.
630-0419

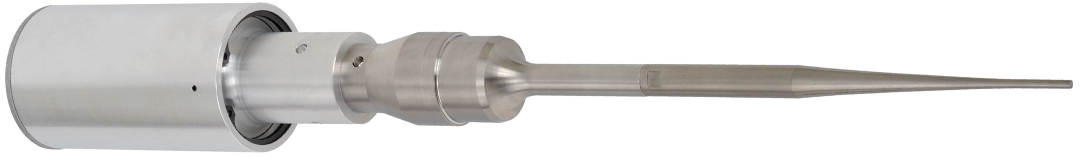

Tapered microtips attach to standard 1/2" probe. (#630-0220)
Caution: Do not exceed the maximum amplitude limits. Operating above the limit may cause the microtip to fracture. Do not use a tapered microtip with a coupler.
Stepped Microtips
The stepped microtip assembly consists of two parts, the coupler and the microtip. The coupler screws into the converter in place of the standard probe and due to the reduced diameter, it is capable of reaching into narrow, long necked vessels. The stepped microtip assembly can deliver lower amplitudes and is advantageous when processing samples under 1mL.
Coupler
Part No.
630-0421

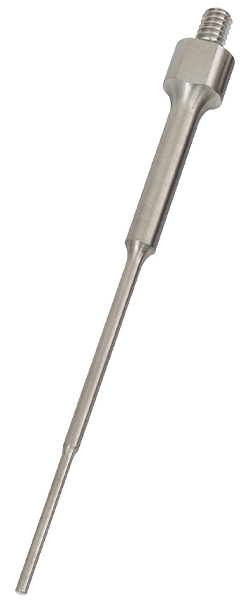

Tip Diameter
1/16" (2mm)
Volume
0.2-5mL
Max Amplitude %
40
Amplitude
110μm
Part No.
630-0423

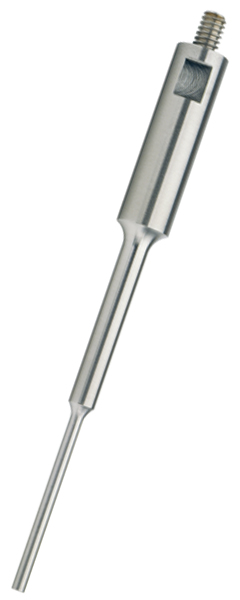

Tip Diameter
1/8" (3mm)
Volume
1-15mL
Max Amplitude %
40
Amplitude
110μm
Part No.
630-0422
Tip Diameter
1/4" (6mm)
Volume
10-50mL
Max Amplitude %
40
Amplitude
80μm
Part No.
630-0435

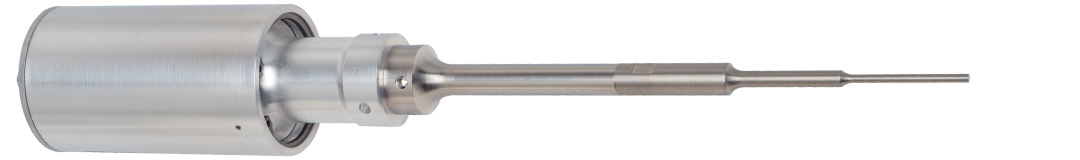

Stepped microtips attach to the coupler. (#630-0421)
