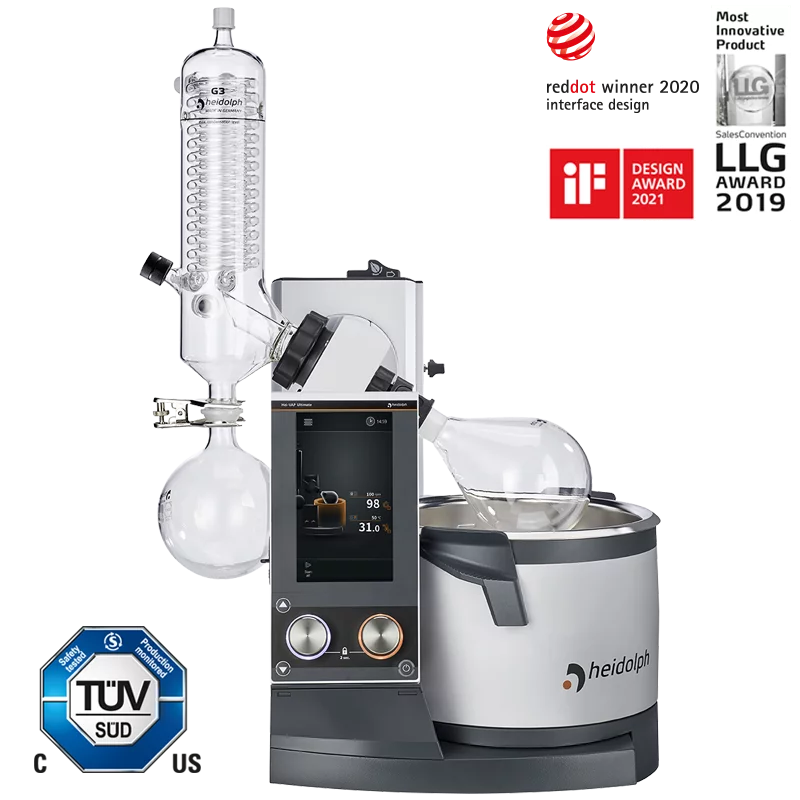

Hei-VAP Ultimate
Hei-VAP Ultimate
Precise setting of rotation speed and heating bath temperature on the digital touch display or – for quick access during an active process – directly via the knobs on the operating panel.
- Central operating panel with 7“ touch display
- Clear display of all values (Basic and Advanced modes)
- With timer, limitation of max. temperature, multilingual menu and text display for error messages
- Separate knobs for rotation and heating with locking function to prevent accidental readjusting
- LED ring lights and pictogram to display the activity even from a distance
- Integrated solvent library to facilitate adjustment of the required vacuum on an external vacuum controller
- USB and Micro SD plus LAN / RS 232 interfaces (Lab 4.0 ready)
- Optional display of vapor temperature

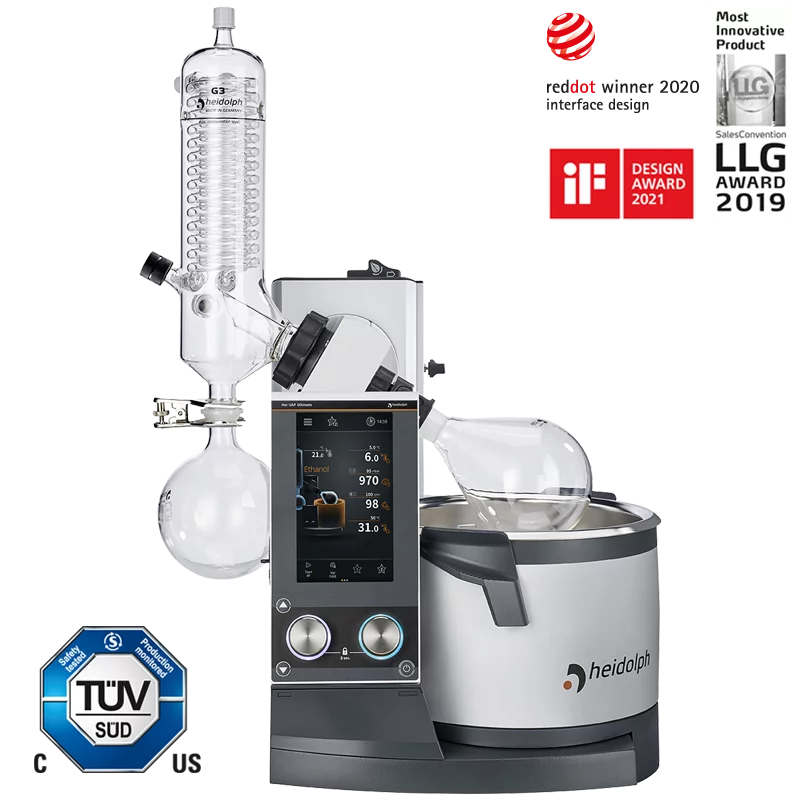

- Subsequent upgrade to Hei-VAP Ultimate Control possible, including vacuum and chiller control
| Lift | Hand lift or Motor lift |
|---|---|
| Rotation speed range | 10 - 280 rpm |
| Rotation speed indicator | 7" LCD color graphic display |
| Heating capacity | 1,300 W |
| Overheat protection bath | cut-off at 5 °C over set temperature via separate PT 1000 |
| Bath temperature setting | 7" LCD color graphic display |
| Heating bath temperature control | electronic / digital |
| Max. size evaporating flask | 5 l |
| Integrated vacuum controller | - |
| Timer | Yes |
| Integrated Hei-CHILL controller | - |
| Vacuum program Dynamic AUTOaccurate requires AUTOaccurate sensor | - |
| Programmable ramps | Yes |
| Condensing surface | 1,400 cm² |
| Condensing surface XL condenser | 2,200 cm² |
