Biosafety cabinet
Biosafety cabinet
Distributor & Service Provider In India (BBC-4S1, BBC-5S1, BBC-6S1)
Applications
Three protection:operator, sample and environment.
Airflow system:70% air recirculation, 30% air exhaust.
A2 cabinet is suitable for working with microbiological research in the absence of volatile or toxic chemicals and radionuclide.

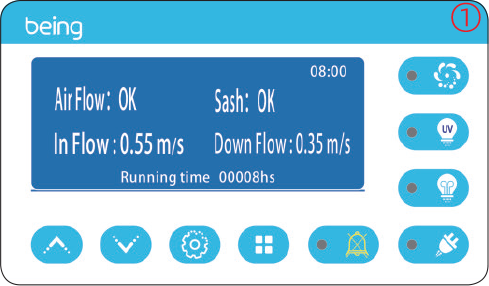

Microprocessor Controller
- Large LCD display, the right place and angled down for easy reach & viewing.
- Real-time monitoring, display all safety information on one screen.
- Real-time monitoring of hepa filter status. Display sound and light alarm about failure, pre-failure, damaged.

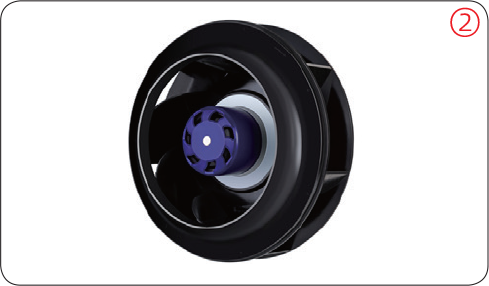

EC Fan
- High efficiency and energy saving with 30%-60% energy savings compared to AC motor.
- The automatic resistance compensation function can provide safe air velocity even when the filter resistance increases by 300%.

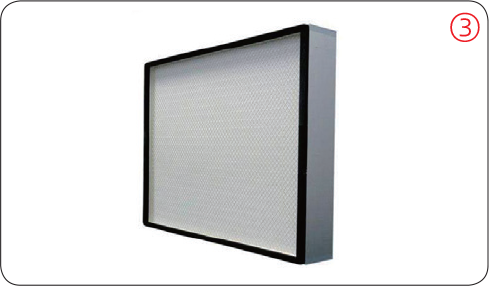

HEPA Filter
- Filtration efficency>99.99%@0.3μm.
- Cleanliness ISO class 5.
- UPLA filter is optional.

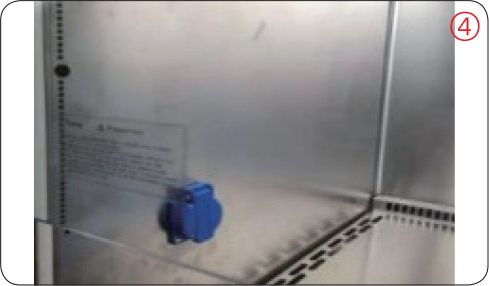

Internal Working Area
- Three sides of the inner wall shape a large arc design, easy to clean.
- A special negative pressure design prevents contaminants from escaping up the side wall into the operator's environment.
- Paper collectors prevent the high maintenance costs associated with paper waste inhalation.
- Easy to remove working surface and support, easy to clean drain tray.
Ergonomic Design
- 5°backward-slanted safety grade glass provides more comfortable viewing.
- Raised arm rest help prevent grille blockig.
- Sash is designed for easy operation with single hand.
- Backlight lighting design reduces operator visual fatigue.
| Model | BBC-4S1 | BBC-5S1 | BBC-6S1 | |
|---|---|---|---|---|
| Internal Dimensions (W×D×H) mm | 1220×580×655 | 1520×580×655 | 1820×580×655 | |
| External Dimensions (W×D×H) mm | 1340×810×2100 | 1640×810×2100 | 1940×810×2100 | |
| Downflow Velocity | 0.35m/s | |||
| Inflow Velocity | 0.53m/s | |||
| Working Access Opening Height | 200mm | |||
| Opening MAX | 450mm | |||
| HEPA Filter Typical Efficiency | 99.995% @ 0.3μm | |||
| Noise | < 65dB | |||
| Fluorescent Lamp Intensity | >900Lux | |||
| UV Lamp | 30W | 40W | 40W | |
| Voltage | 220V/50Hz | |||
| Power Consumption | 450VA | 500VA | 600VA | |
| Net Weight | 245kg | 290kg | 340kg | |
| Shipping Weight | 325kg | 380kg | 440kg | |
| Shipping Dimensions (W×D×H) mm | 1500×960×1860 | 1800×960×1860 | 2110×960×1860 | |
