General Accessories
General Accessories
Footswitch
For hands-free operation with 10' (3m) cable.
Part No.
830-00004
VCX 130 and VC 50 only
ROSETTE GLASS COOLING CELLS
The rosette is a glass cell that enables uniform treatment at low temperatures. Fill the rosette with your liquid sample and place it in an ice bath. The ultrasonic energy forces the sample to circulate under the probe and through the cooling arms.
300mL Rosette
Part No.
830-00001
30mL Rosette
Part No.
830-00003
JACKETED BEAKERS
The jacketed beaker is attached to a chiller or another cold water source. The chilled water is circulated around the liquid within the beaker maintaining the desired sample temperature.
10mL cooling cell with water jacket
Part No.
830-00009
100mL cooling cell with water jacket
Part No.
830-00010
REPLACEMENT CONVERTER
Converter with cable for VCX-130 and VC-50 models.
Part No.
CV18
REPLACEMENT CONVERTER
Converter with cable and push button control for VCX-130PB model.
Part No.
CV188

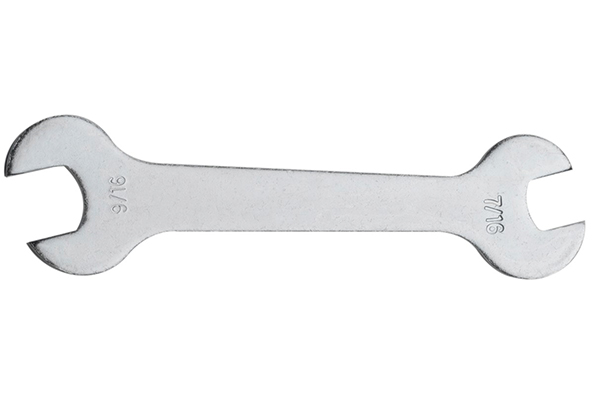

REPLACEMENT WRENCH
Two wrenches are required to tighten/remove accessories from converter.
Part No.
888-00026
